ADJUSTABLE 3-14.6V and 3-100A for
Lithium Polymer For Lithium Ion Battery Lead Acid Battery
VOLTAGE RETAINER & STABILIZER
UK PLUG WITH POWER CABLE
ADJUSTER KNOBS
CROCODILE CLIPS

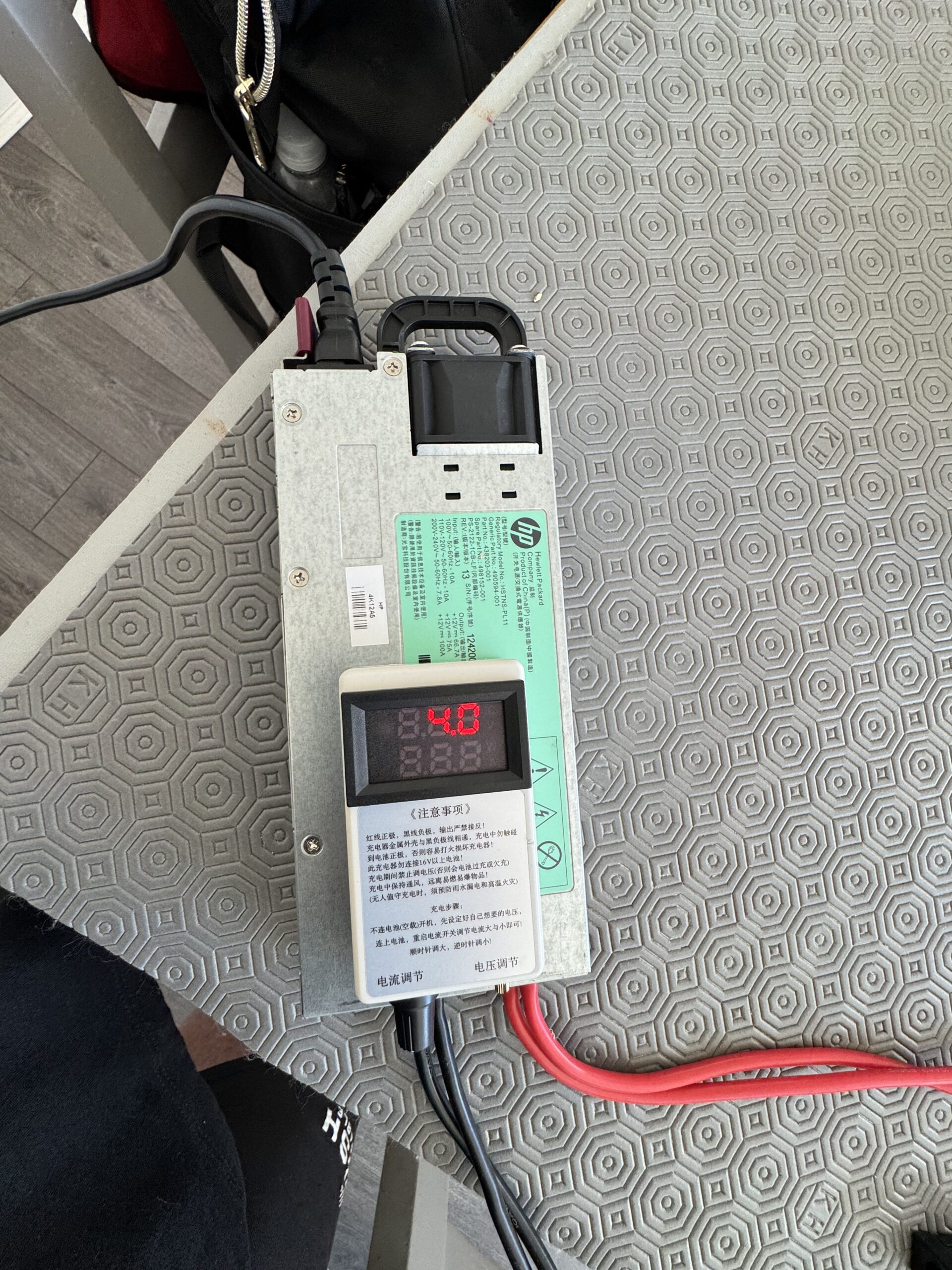

INFO SCREEN TO VIEW CURRENT VOLTAGE, W AND AMP
YOU MUST NOT PAY HUGE AMOUNT FOR VOLTAGE SUPPLY DEVICES!

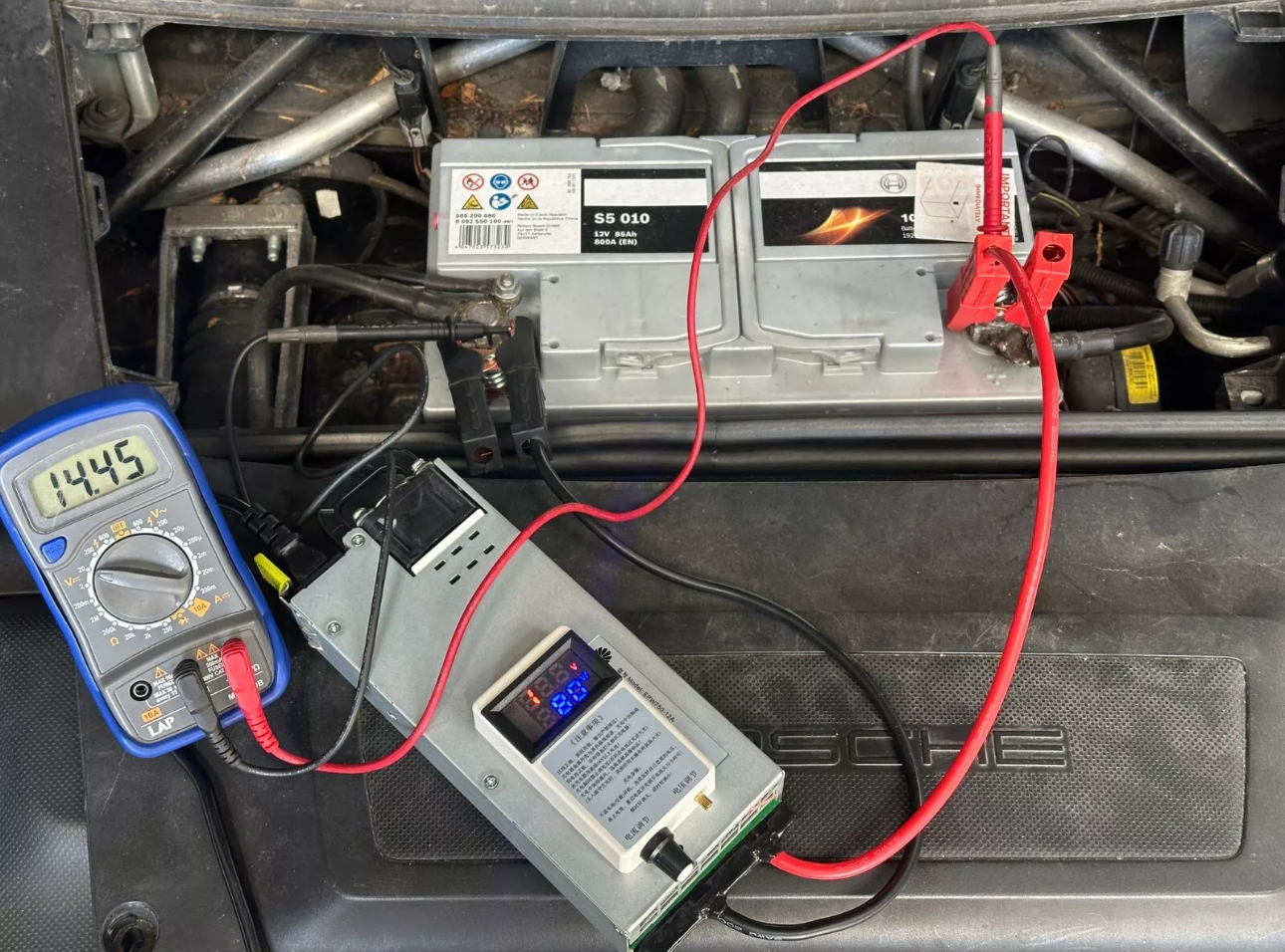

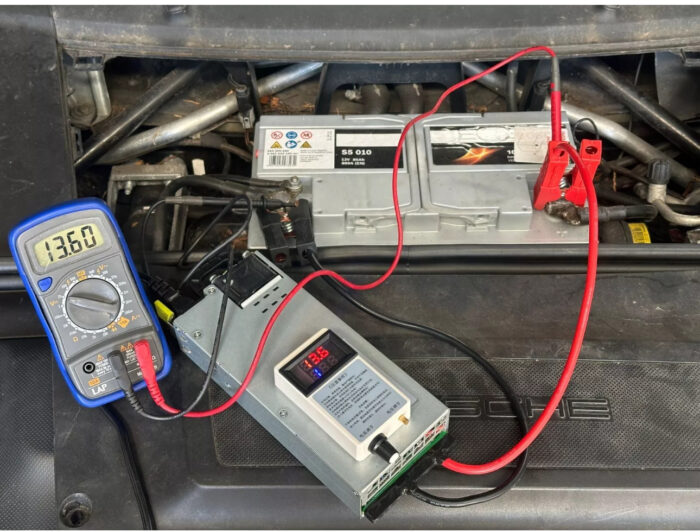

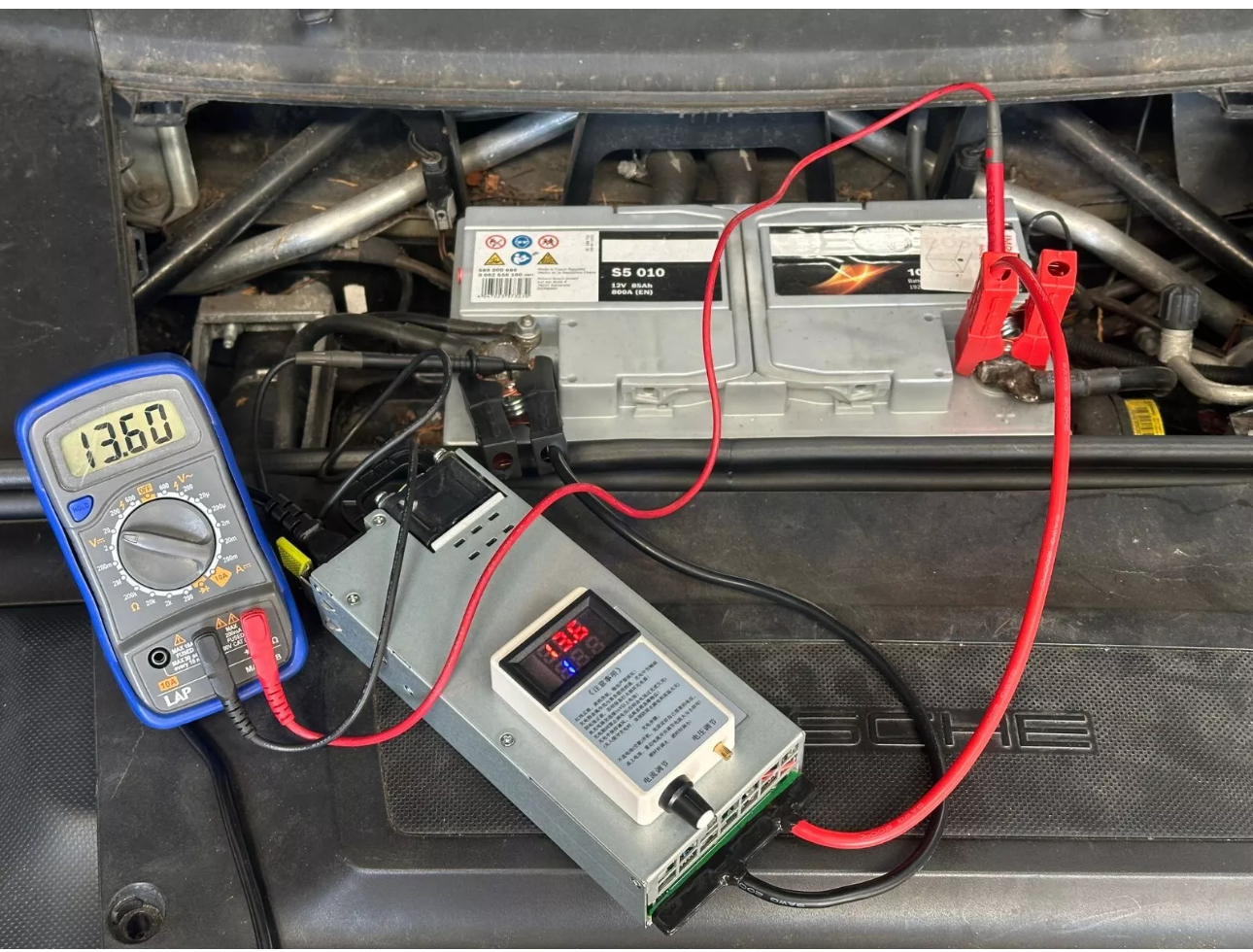

WHEN YOU ARE CODING OR REMAPPING THE VEHICLE YOU SHOULD RETAIN BATTERY BETWEEN 12-14.6V TO AVOID DAMAGE MODULES AND ECU
It can be used for automobile programming.
Input voltage: AC 110-240V 50～60HZ
Output voltage: DC 3-15V adjustable
Output current: 3-100A/ 1-50A 3-62A adjustable (only constant current and constant voltage can be used as a charger)
Rated power: output 1200W/600W
Peak power: output 1200W/930W/W750
Maximum current: output 100A (generally used for automotive programming voltage regulation)
Continuous current: output 85A (24 hours non-stop charging lithium battery)
It is not a false standard of power supply, but the principle of power supply use must be understood, and a little margin should be left in everything.
Voltage error accuracy: +-0.1V
Current error accuracy: +-2A
Charging method: constant current and constant voltage, self-stop when fully charged, when the current shows 0, it is fully charged
Work Conditions:
Ambient temperature: -5 – 40℃
RH: 5 – 95%
Max. altitude: 10000 meter
Cooling: chargers use of forced air cooling system. Under dustless and ventilated conditions, the full load temperature rise not exceeding 40℃.
Storage conditions
Ambient temperature: -40 – 70℃
RH: 0 – 95%
Max. altitude: 20000 meters.
